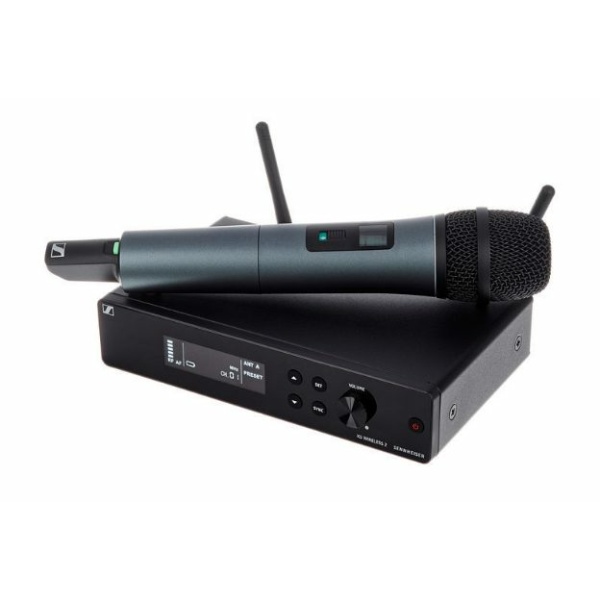

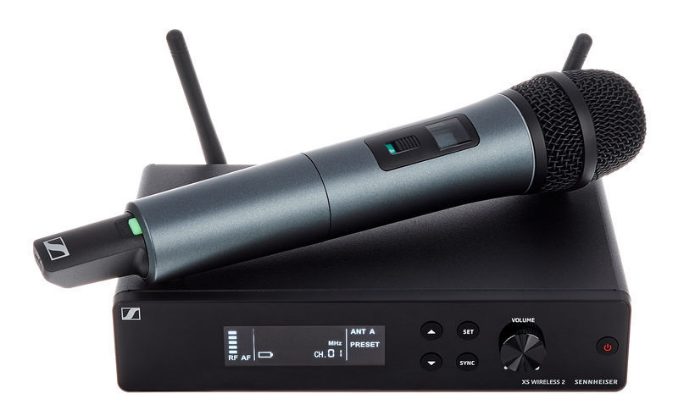

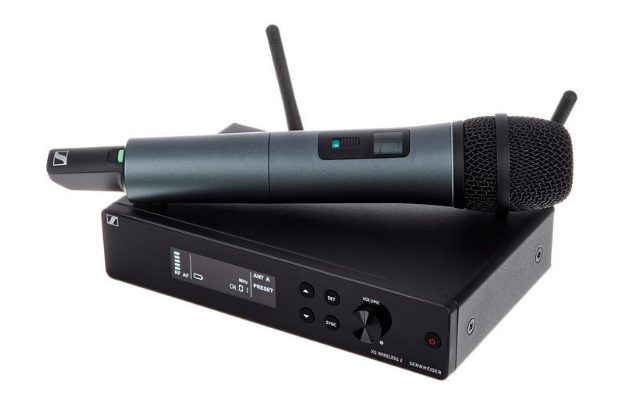

SENNHEISER XSW2-835 B-BAND 614 – 638 MHz

Overview:
Raise your voice. High flexibility for those willing to go a step further. XS WIRELESS 2 grows with your demands by offering an intuitive LCD display for more manual options and 12 compatible channels in a stable UHF band, withstanding tougher live stage conditions. The XS WIRELESS 2 VOCAL SET is an easy to use all-in-one wireless system for singers and presenters featuring Sennheiser’s renowned evolution microphone capsule e835 (superior dynamic, cardioid) to perform under pressure. True Diversity receiver in a metal housing and rackmount kit included.

Features:
– Excellent live sound featuring Sennheiser’s renowned evolution microphone capsules
– True diversity receiver with metal housing
– External antennas
– Automatic frequency management and synchronization via
– remote channel for easy setup
– Fully tunable over a wide range of UHF frequencies
– Rackmount kit included
– Up to 12 compatible channels

What’s in the box?
– 1 receiver EM-XSW 2
– 1 handheld transmitter SKM 835-XSW
– 1 microphone clamp MZQ 1
– 1 power supply NT 12-5 CW
– 2 AA batteries
– 1 rackmount kit
– 1 pouch
– user manual

Technical Data:

Receivers:
– Dimensions approx. 200 x 42 x 127 mm, microphone: approx. 260 x 50 mm
– Weight approx. 680g
– Power supply 12 V DC nom. / 300 mA
– Housing Metal, microphone: robust ABS
– AF frequency response 50 to 16,000 Hz (-3 dB)

Microphone dynamic:
– Frequency response 50 to 16,000 Hz (-3 dB)
– THD, total harmonic distortion = 0.9%
– Pick-up pattern cardioid
– Signal-to-noise ratio = 103 dBA
– RF output power 10 mW
– Switching bandwidth up to 24 MHz
– Operating time approx. 10 hrs
– Modulation wideband FM

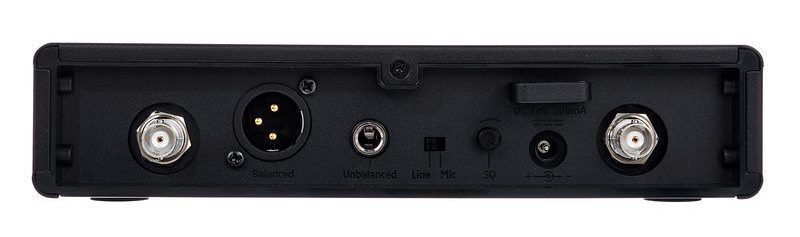

– Output voltage 1/4″ (6.3 mm) jack socket (unbalanced): +6 dBu, XLR socket (balanced): +12 dBu
– Frequency 8 frequency banks, each with up to 12 factory-preset channels
– Frequency range B-614-638 MHz
– Sensitivity < 3 µV at 52 dB(A)rms S/N
– Squelch switchable from 3 dBµV to 28 dBµV (via Pilot Tone)
– Synchronization 2.4 GHz, Low Power OQPSK (only active during synchronization)
– Line 20 dB, switchable
– Input sensitivity 1.5 mV / Pa
– Adjustment Range Transmitter 0 to -30 dB, adjustable in 10 dB steps
– Audio adjustment range 40 dB, adjustable in 5-dB steps
– Temperature Range operation: 0°C to +40°C
– storage: -20°C to +70°C
– Receiver Principle double superheterodyne
– Diversity principle True Diversity
– Weight approx. 245g
– Power supply 2 AA size batteries, 1.5 V
– AF frequency response 80-14,000 Hz
