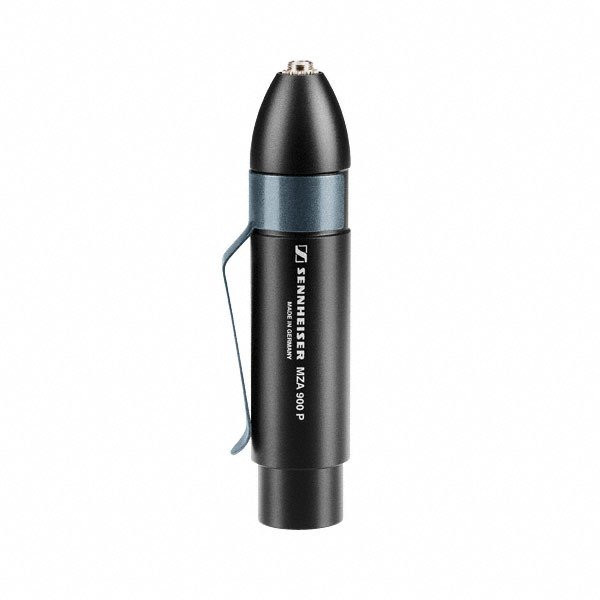

SENNHEISER MZA900 P-4 PHANTOM POWER ADAPTOR XLR 3P / INPUT JACK STEREO 3,5MM

Phantom power adaptor to connect pre-polarized condenser microphones with a 3.5mm jack plug to microphone inputs. Lockable 3.5mm jack socket. Robust chassis. Ideal if using both wired and wireless applications.

The MZA 900 P phantom power adaptor is used to connect pre-polarized condenser microphones with a 3.5mm jack plug to microphone inputs with 10 – 52 V phantom powering (P12 – P48). The connected microphone is supplied via the adaptor.

The phantom power adaptor is available in two different versions:
– MZA 900 P with lockable 3.5 mm jack socket (as evolution wireless)

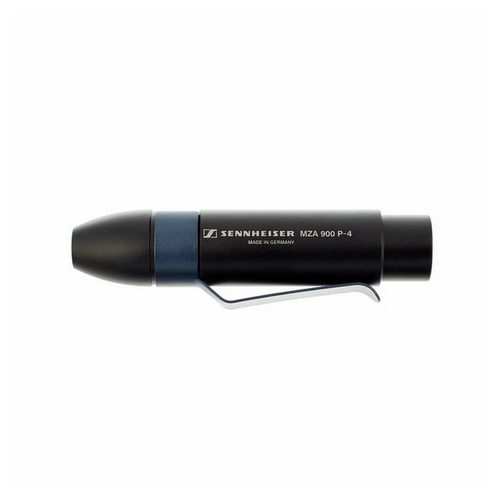

– MZA 900 P-4 with lockable 3-pin special socket

The adaptor is also a quick and flexible solution if a microphone is to be used for both wired and wireless applications. One and the same microphone can be used together with the MZA 900 P(-4) for wired applications (e.g. in the studio) or with a transmitter of the evolution series for wireless applications.

The MZA 900 P can also be used as a cable tester for XLR microphone cables.

Features:
– Robust metall chassis

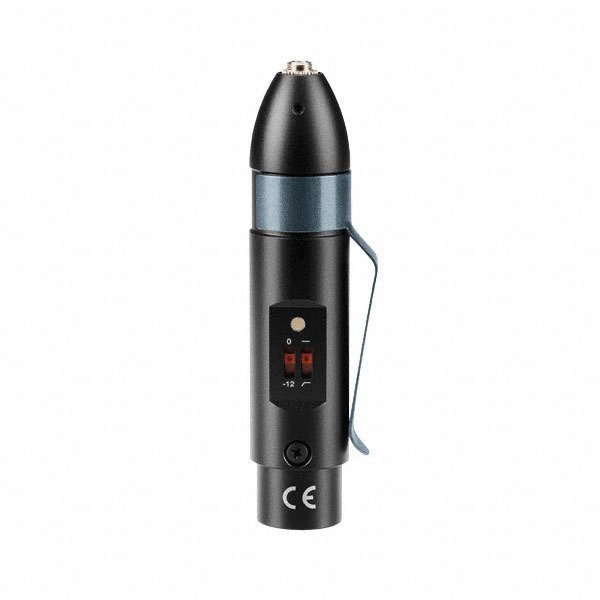

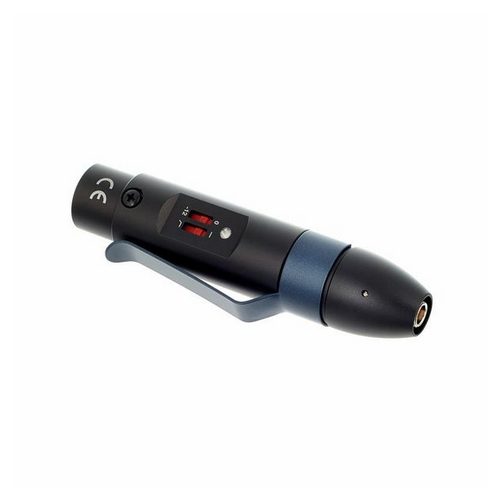

– Switchable gain (0/-12dB)
– Switchable roll-off filter (125 Hz (-3 dB), 12 dB/oct)
– Two-colour control LED (phantom power, audio peak)
– Input 3,5mm stereo jack socket, lockable
– Output XLR-3M

What’s in the box?
– MZA 900 P with belt clip
– Instructions for use
– Warranty certificatee

Technical Data:
– Gain: 0/-12 dB
– Output voltage: 1,8V (P48), 0,6V (P12) @ 0dB gain
– Phantom powering: P12 – P48, 10 – 52V, 2,6 – 2,8mA
– Output impedance 100 O
– Dimensions Ø 19/22 mm, L 100 mm
– Weight 60 g
– Nominal impedance 100 O
– Operating temperature -20…..+60 °C
