SENNHEISER EW100 G4 SET: ME3 HEADSET G-BAND 470-516MHz

Versatile wireless systems for those who sing, speak or play instruments with up to 42 MHz tuning bandwidth in a stable UHF range and fast, simultaneous setup of up to 12 linked systems.
For hands-free operation during performances and speeches: Robust bodypack transmitter and feedback resistant headmic ME 3-II with high speech intelligibility for daily use on stage.

Features:
– Engineered for professional live sound: Rugged all-in-one wireless system for singers and presenters.
– Robust bodypack transmitter and feedback resistent headmic ME 3-II with high speech intelligibility for daily use on stage
– True diversity half-rack receiver in a full-metal housing with intuitive LCD display for full control
– Easy and flexible wireless synchronization between transmitter and receiver via infrared
– Fast frequency allocation for up to 12 receivers via new linking functionality
– Up to 20 compatible channels
– Up to 42 MHz bandwidth with 1680 selectable frequencies, fully tunable in a stable UHF range
– Transmission Range: up to 100 meters / 300 feet
– High RF output power (up to 30 mW) depending on country regulations

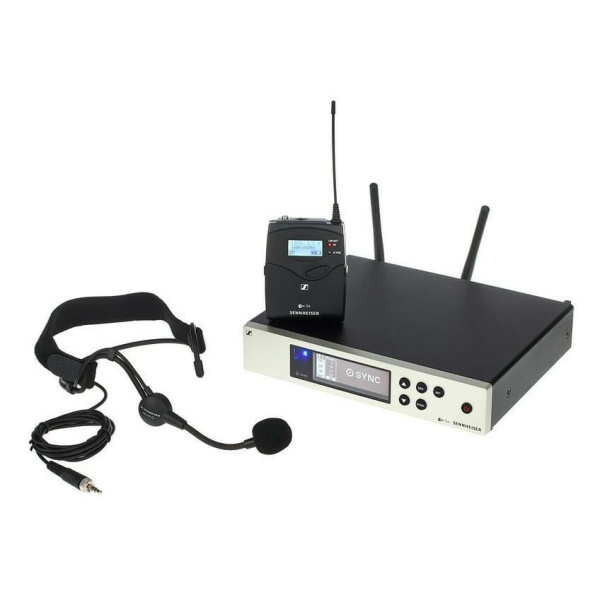

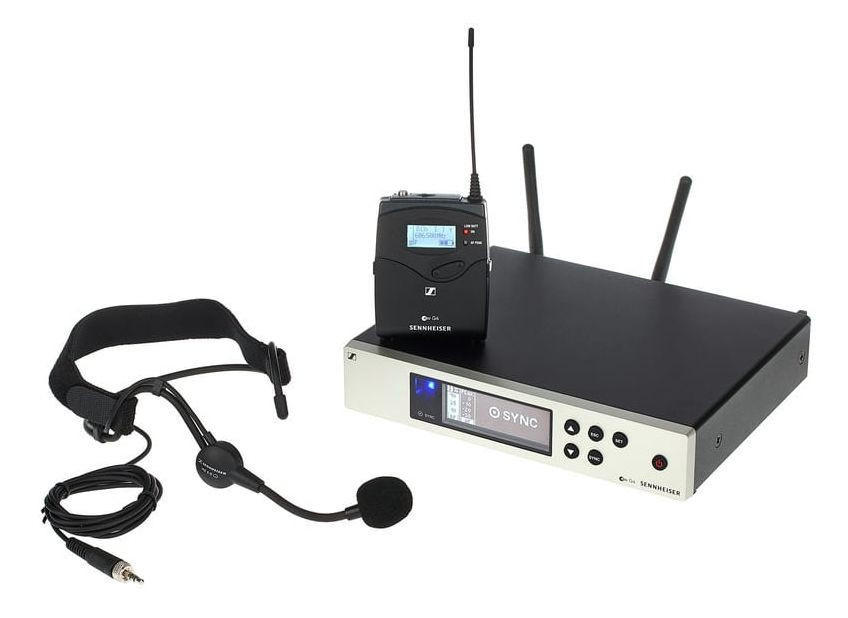

What’s in the box?
– EM 100 G4 true diversity receiver
– SK 100 G4 bodypack transmitter
– ME 3 headset microphone
– GA 3 rackmount set
– power supply
– 2 AA batteries
– 2 rod antennas
– RJ 10 cable
– quick guide
– safety guide
– manufacturer declaration sheet
– frequency supplement sheet

Technical Data:

EM 100 G4:
– Frequency range A1: 470 – 516 MHz, A: 516 – 558 MHz, AS: 520 – 558 MHz, GB: 606 – 648 MHz, G: 566 – 608 MHz, B: 626 – 668 MHz, C: 734 – 776 MHz, D: 780 – 822 MHz, E: 823 – 865 MHz, 1G8: 1785 – 1800 MHz, JB: 806 – 810 MHz, K+: 925 – 937,5 MHz
– Dimensions Approx. 190 x 212 x 43 mm
– Compander Sennheiser HDX
– THD, total harmonic distortion = 0.9 %
– Weight Approx. 980 g
– Audio output 6.3 mm jack socket (unbalanced): +12 dBu
– XLR socket (balanced): +18 dBu
– Signal-to-noise ratio = 110 dBA
– Switching bandwidth up to 42 MHz
– Peak deviation ±48 kHz
– Nominal deviation ±24 kHz
– Modulation Wideband FM
– Power supply 12 V DC
– Antenna connector 2 BNC sockets
– Current consumption 300 mA
– Adjacent channel rejection Typically = 65 dB
– Intermodulation attenuation Typically = 65 dB
– Receiving frequency Max. 1680 receiving frequencies, adjustable in 25 kHz steps 20 frequency banks, each with up to 12 factory-preset channels, no intermodulation 1 frequency bank with up to 12 programmable channels
– RF sensitivity < 2.5 µV for 52 dBA eff S/N
– Squelch low: 5 dBµV middle: 15 dBµV high: 25 dBµV
– Equalizer Preset 1: Flat, Preset 2: Low Cut (-3 dB at 180 Hz), Preset 3: Low Cut/High Boost (-3 dB at 180 Hz, +6 dB at 10 kHz), Preset 4: High Boost (+6 dB at 10 kHz)
– Temperature Range -10 °C to +55 °C
– Receiver Principle True diversity
– Blocking = 70 dB

SK 100 G4:
– Dimensions Approx. 82 x 64 x 24 mm
– Compander Sennheiser HDX
– THD, total harmonic distortion = 0.9 %
– Weight (incl. batteries) approx. 160 g
– Signal-to-noise ratio = 110 dBA
– RF output power Max. 30 mW
– Switching bandwidth up to 42 MHz
– Peak deviation ±48 kHz
– Nominal deviation ±24 kHz
– Operating time Typically 8 h
– Modulation Wideband FM
– Power supply 2 AA batteries, 1.5 V or BA 2015 accupack
– Current consumption at nominal voltage: typ. 180 mA
– with transmitter switched off: = 25 µA
– Input impedance 40 kO, unbalanced / 1 MO
– Max. Input voltage 3 Veff
– Powering 3 V battery / 2.4 V rechargeable battery
– Transmission frequency Max. 1680 transmitting frequencies, adjustable in 25 kHz steps 20 frequency banks, each with up to 12 factory-preset channels, no intermodulation 1 frequency bank with up to 12 programmable channels
– AF frequency response Mic: 80 – 18,000 Hz Line: 25 – 18,000 Hz
– Temperature Range -10 °C to +55 °C
– Frequency stability = ±15 ppm

ME 3:
– Connector 3.5 mm jack
– Sound pressure level (SPL) 150 dB SPL
– Cable length approx. 1.60 m
– Transducer principle pre-polarized condensor microphone
– Pick-up pattern cardioid
– Sensitivity 1.6 mV/Pa
– Temperature Range -10 °C to +55 °C
