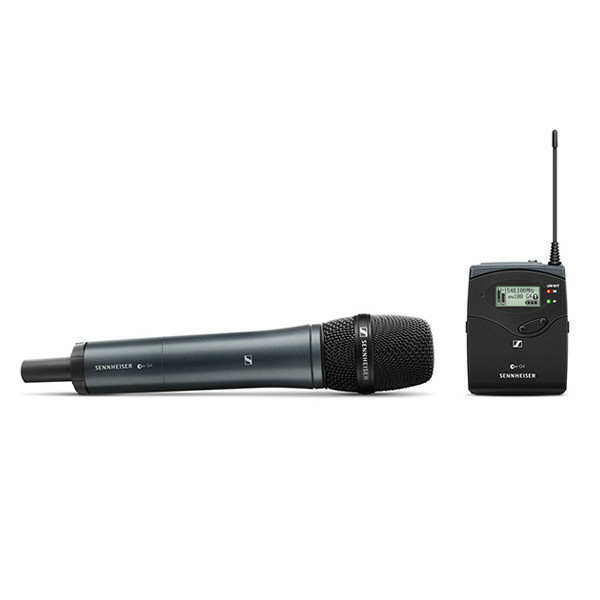

SENNHEISER EW 135P G4 WIRELESS BROADCAST SYSTEM

A broadcast quality sound solution. Providing the highest flexibility for your video sound and field recording applications.
A robust wireless microphone system that offers excellent sound quality, simple mounting and ease of use.
The easiest wireless solution for moderators or reporters. The rugged e 835 microphone resists any bad weather or field condition, while the versatile receiver is easily mounted to any camera.

Features:
– Rugged all-in-one wireless system with high flexibility for broadcast quality sound
– Excellent sound and construction quality
– Easy to use and fast setup time
– Powerful and reliable wireless transmission
– Range: up to 100 meters / 330 feet
– Up to 8 hours of operation time

What’s in the box?
– EK 100 G4 camera receiver
– SKM 100 G4 handheld transmitter
– MMD 835-1 microphone head
– MZQ 1 microphone clamp
– 4 AA batteries
– CA 2 camera adapter
– CL 1 3.5 mm jack cable
– CL 100 XLR to 3.5 mm jack adapter cable
– quick guide
– safety guide
– manufacturer declaration sheet

Technical Data:
EK 100 G4:
– Frequency range A: 516 – 558 MHz
– Dimensions Approx. 82 x 64 x 24 mm
– Compander Sennheiser HDX
– THD, total harmonic distortion = 0.9 %
– Weight (incl. batteries) approx. 160 g
– Audio output 3.5 mm jack socket: +12 dBu (mono, unbalanced)
– Signal-to-noise ratio = 110 dBA
– Switching bandwidth up to 42 MHz
– Peak deviation ±48 kHz
– Nominal deviation ±24 kHz
– Operating time Typically 8 h
– Modulation Wideband FM
– Power supply 2 AA batteries, 1.5 V or BA 2015 accupack
– Current consumption at nominal voltage: typ. 180 mA with receiver switched off: = 25 µA
– Adjacent channel rejection = 65 dB
– Intermodulation attenuation = 65 dB
– Powering 3 V battery / 2.4 V rechargeable battery
– Receiving frequency Max. 1680 receiving frequencies, adjustable in 25 kHz steps 20 frequency banks, each with up to 12 factory-preset channels, no intermodulation 1 frequency bank with up to 12 programmable channels
– RF sensitivity < 1.6 µV for 52 dBA eff S/N
– Squelch low: 5 dBµV, middle: 15 dBµV, high: 25 dBµV
– Temperature Range -10 °C to +55 °C
– Receiver Principle Adaptive diversity
– Blocking = 70 dB

SKM 100 G4:
– Dimensions Approx. Ø 50 x 265 mm
– Compander Sennheiser HDX
– THD, total harmonic distortion = 0.9 %
– Weight (incl. batteries) approx. 450 g
– Signal-to-noise ratio = 110 dBA
– RF output power Max. 30 mW
– Switching bandwidth up to 42 MHz
– Peak deviation ±48 kHz
– Nominal deviation ±24 kHz
– Operating time Typically 8 h
– Modulation Wideband FM
– Power supply 2 AA batteries, 1.5 V or BA 2015 accupack
– Current consumption at nominal voltage: typ. 180 mA with transmitter switched off: = 25 µA
– Input impedance 40 kO
– Max. Input voltage 3 Veff
– Powering 3 V battery / 2.4 V rechargeable battery
– Transmission frequency Max. 1680 transmitting frequencies, adjustable in 25 kHz steps 20 frequency banks, each with up to 12 factory-preset channels, no intermodulation 1 frequency bank with up to 12 programmable channels
– AF frequency response 80 – 18,000 Hz
– Temperature Range -10 °C to +55 °C
– Frequency stability = ±15 ppm

ME 2:
– Connector 3.5 mm jack
– Frequency response 50 to 18,000 Hz (ME 2-II)
– Max. sound pressure level 130 dB
– Cable length approx. 1.60 m
– Transducer principle pre-polarized condensor microphone
– Pick-up pattern omni-directional
– Sensitivity in free field, no load (1kHz) 20 mV/Pa
– Equivalent noise level 36 dB
