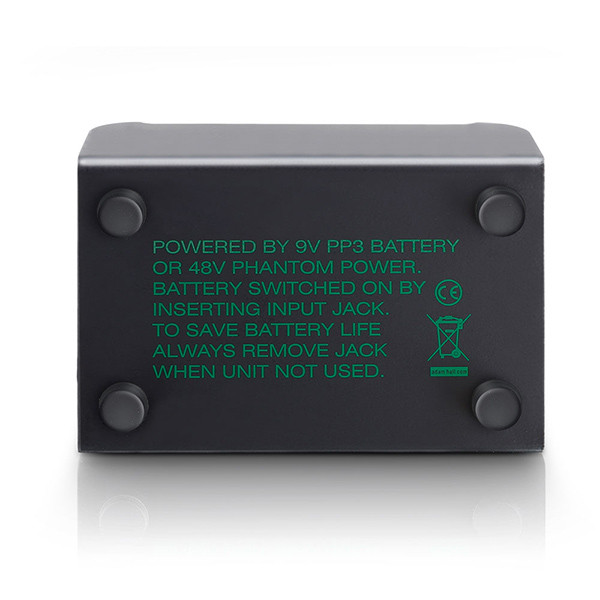

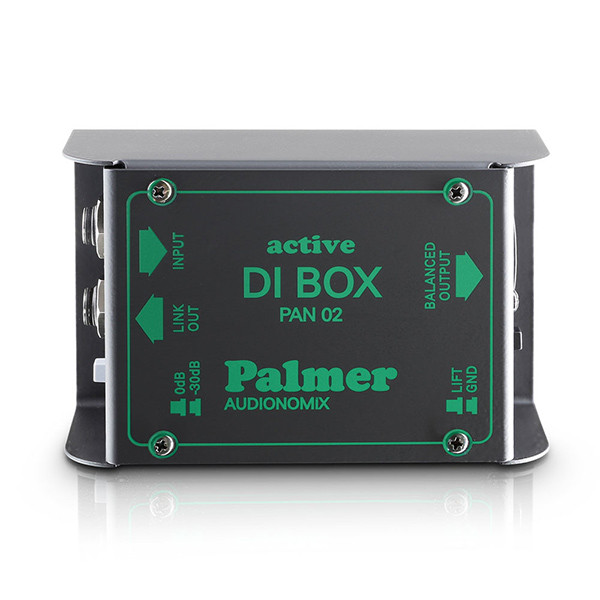

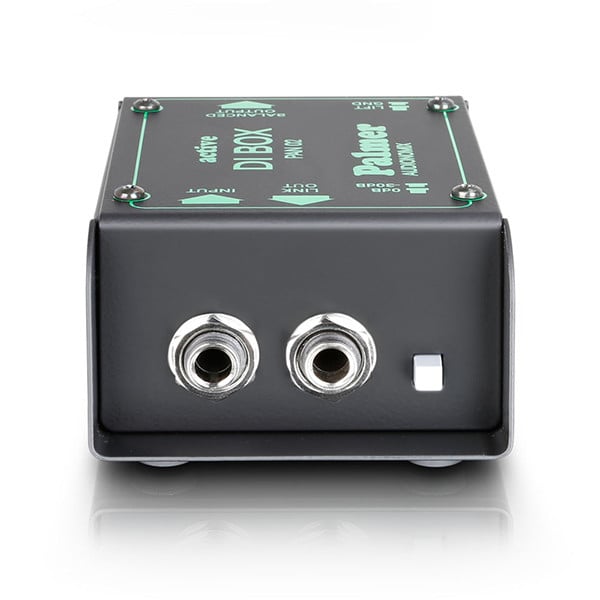

PALMER PAN 02 DI BOX ACTIVE – SINGLE CHANNEL
66,00 €
PALMER PAN 02 AUDIONOMIX DI BOX ACTIVE
Standard active DI box. Can be operated with 9 V batteries or 48 V phantom power. High-impedance input’ higher output level than with a passive DI box. Active circuitry allows for high input impedance ( 1 meg. ohm) and higher input sensitivity (typical difference between in and out -4 dB). Maximum output impedance with phantom power operation +10 dB. Output: transformer balanced. The special “floating ground” circuitry enables ground lift even during phantom power operation. Metal case 110 x 73 x 42 mm.
Specifications:
No. of channels: 1
Passive/Actibe: Active
Transformer balanced: Yes
Attenuator: -30 dB
Power Supply: 9V / 48V
Input/Output Gain: -4 dB
Ground lift switch: Yes
Max Input Level: +45 dBu
Max Output Level: +10 dBu
Frequency Range 2K Source Imp. -1dB: 10 Hz – 20 kHz
Input Impedance 60Hz: 1 MO
Nom. Output Impedance: 600 O
Power consumption: 3.8 mA (9V), 4 mA (48V)
Housing: Steel
Dimension: 110 x 73 x 42 mm
