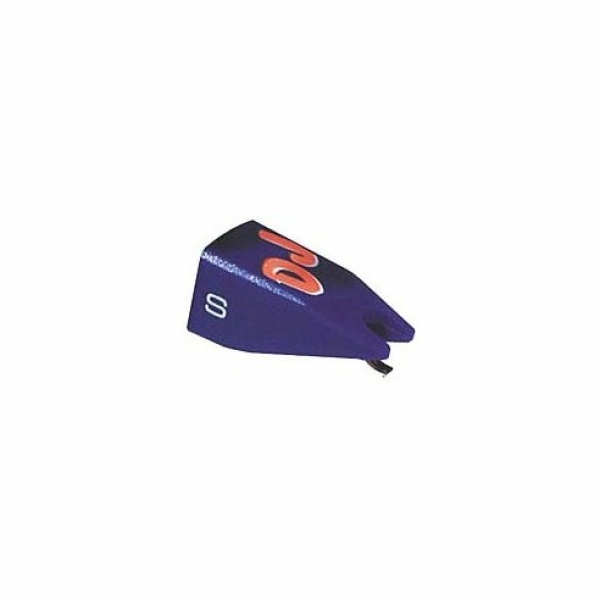

Puntina di ricambio per testina ORTOFON DJ S
caratteristiche:
Output voltage at 1000Hz, 5cm/sec. – 6 mV
Channel balance at 1kHz – 2 dB
Channel separation at 1kHz – 23 dB
Channel separation at 15 kHz – 15 dB
Frequency range at -3dB – 20-20.000 Hz
Frequency response – 20-18.000 Hz 3dB/-2dB
Tracking ability at 315 Hz at recommmende tracking force – 80 μm
Compliance, dynamic lateral – 9 μm/m N
Stylus type – Spherical
Stylus tip radius – R 18 μm
Tracking force range – 2,0-4,0 g (20-40 mN)
Tracking force recommended – 3,0 g (30 mN)
Tracking angle – 20°
Internal impedance, DC resistance – 750 Ohm
Internal inductance – 450 mH
Recommended load resistance – 47 kOhm
Recommended load capacitance – 200-600 pF
Cartridge weight – 18,5 g
Compatible with cartridges – DJ S
Informazioni aggiuntive
| Condizione |
|---|
