OPCODE STUDIO4 – FUORI PRODUZIONE

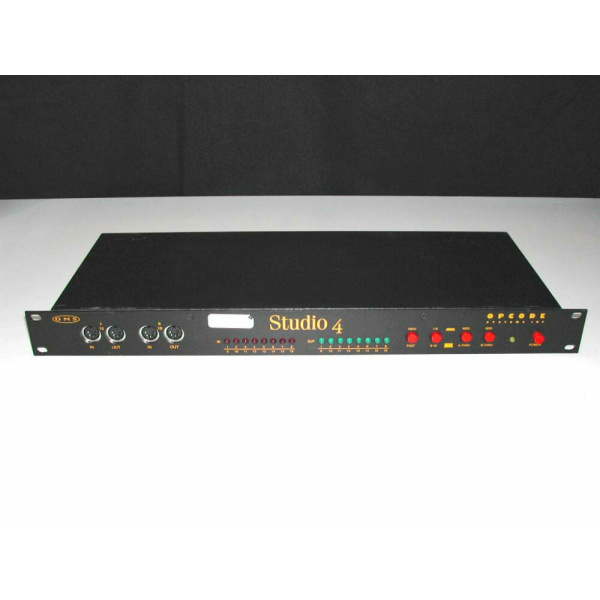

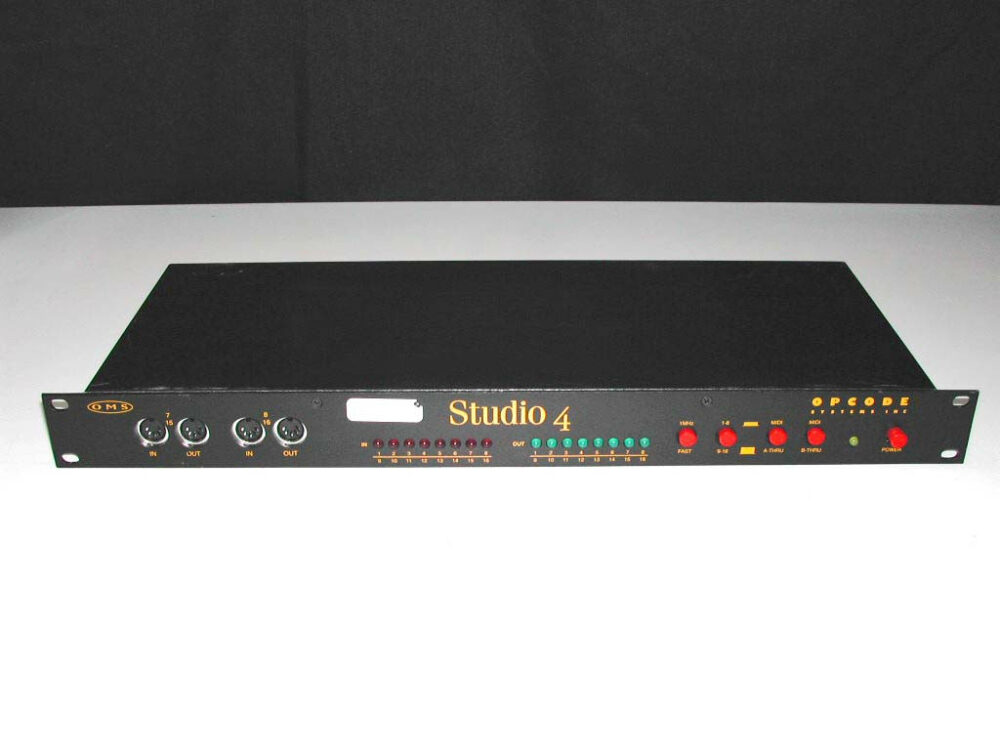

The Opcode Studio 4 is a 128 channel, 8-IN/8-OUT MIDI interface/SMPTE synchronizer. As an interface, the Studio 4 allows the Macintosh to independently communicate with each of the 8 MIDI INs and OUTs. As a synchronizer, it reads and writes SMPTE in all formats. Opcode’s Open Music System (OMS) software adds filtering, channelization, note range splitting, controller mapping, and velocity and control value modification to the Studio 4’s capabilities.

SPECIFICATIIONS
128 MIDI Channels
8 MIDI INs/OUTs
Read & writes all formats of SMPTE
Converts to MIDI Time Code or direct time lock
Battery backed-up memory
MIDI activity LEDs for each MIDI IN/OUT
2 Peripheral Thru Switches
2 pairs of MIDI INs/OUTs on front panel
Single rack-space
