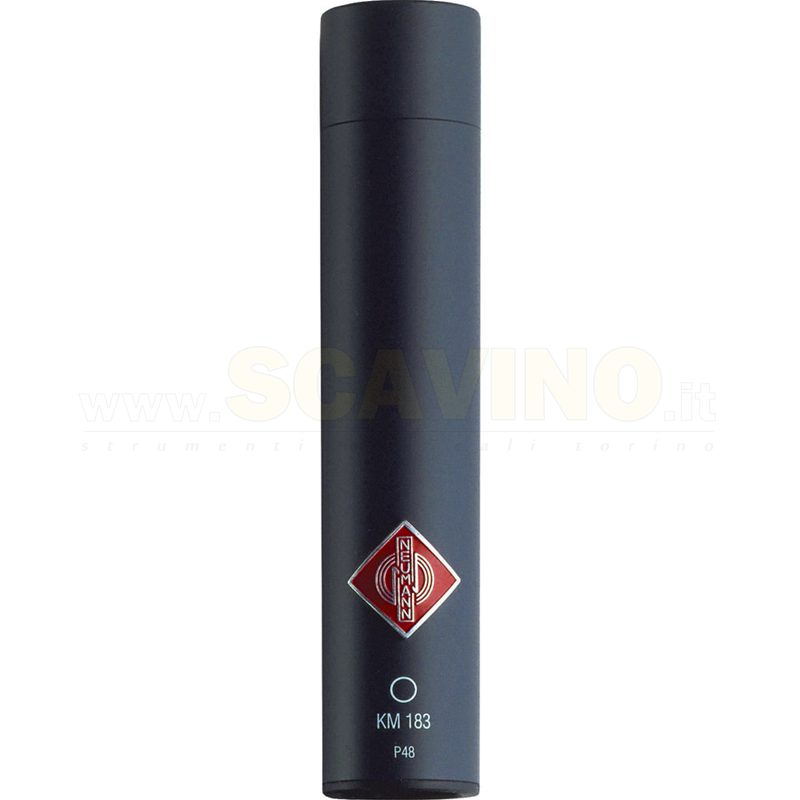

Neumann KM 183 MT Microfono Omnidirezionale

Acoustical operating principle Pressure transducer
Directional Pattern Omnidirectional
Frequency Range 20 Hz … 20 kHz
Sensitivity at 1 kHz into 1 kohm 12 mV/Pa ± 1 dB
Rated Impedance 50 ohms
Rated load impedance 1 kohms
Equivalent noise level, CCIR 1 24 dB
Equivalent noise level, A-weighted 2 13 dB-A
Maximum SPL for THD 0.5% 3 140 dB
Signal-to-noise ratio, CCIR (re. 94 dB SPL) 4 70 dB
Signal-to-noise ratio, A-weighted (re. 94 dB SPL) 5 81 dB
Maximum output voltage 10 dBu
Supply voltage (P48, IEC 61938) 48 V ± 4 V
Current consumption (P48, IEC 61938) 3.2 mA
Matching connector XLR 3 F
Weight approx. 80 g
Diameter 22 mm
Length 107 mm
