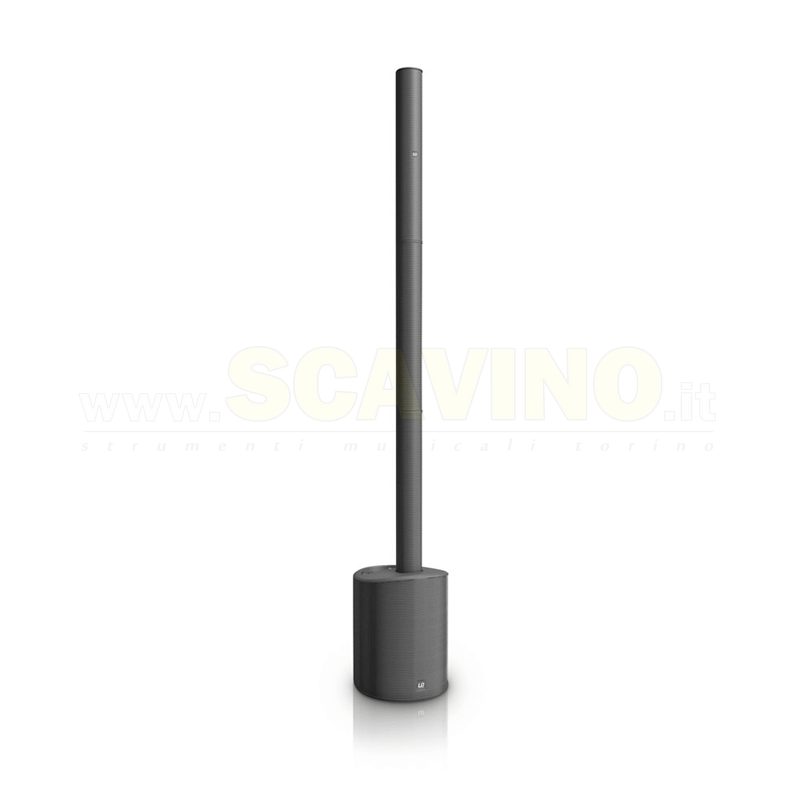

LD Systems MAUI5 Sistema Compatto

– Sistema completo di amplificazione con top e subwoofer – Colore: nero – Max. SPL (continuous): 114 dB – Max. SPL (peak): 120 dB – Risposta in frequenza: 50 – 20,000 Hz – Angolo di dispersione(H x V): 120° x 20° – Altezza totale con sistema completamente montato: 1985 mm – Altre funzionalità: Processamento del segnale con DSP di ultima generazione, mixer 4 canali, Bluetooth Caratteristiche del Woofer – Woofer da 8” (203.2 mm) – Magnete: ferrite – Woofer Voice Coil: 2” (50.8 mm) – Tipo cabinet: bass reflex – Materiale Cabinet: ABS – Dimensioni: (WxHxD): 305x405x395 mm Caratteristiche Mid/Hi System – Midrange Size: 4 x 3” (76.2 mm) – Midrange Magnet: neodymium – Midrange Voice Coil: 1” (25.4 mm) – Mid/Hi System Impedance: 4 O – Speaker Inputs: 1 – Speaker Input Connections: custom-made multi-pin – Mid/Hi System Cabinet Type: closed – Mid/Hi System Cabinet Material: ABS – Mid/Hi System dimension (WxHxD): 82x535x105 mm Amplificatore (integrato dentro al Subwoofer) – Amplifier: class D – Amplifier Power System (RMS) 200 W – Amplifier Power System (peak): 800 W – Protection Circuits: DSP-based multiband limiter, overvoltage, short circuit, overcurrent – Cooling System: convection – Controls: Sub Level, MP3/Hi-Z Level, Main Level, Line Level, Mic Level, BT Level, BT Pairing Button – Display Elements: Signal, On, Limit, Protect – Power Supply: switching power supply – Operating Voltage: 100 V AC – 120 V AC / 50 – 60 Hz, 200 V AC – 240 V AC, 50 – 60 Hz (automatic adjustment) – Line Inputs: 2 x stereo (XLR, 6.3 mm jack) – Mic Inputs: 1 (XLR, 6.3 mm jack) – MP3 Inputs: 1 (Jack 3.5 mm) – Hi-Z Inputs: 1 (Jack 6.3 mm) – Speaker Outputs: 1 (custom-made multi-pin) Caratteristiche del DSP – Convertitore AD / DA: 24 / 24 Bit – Frequenza di campionamento: 48 kHz
