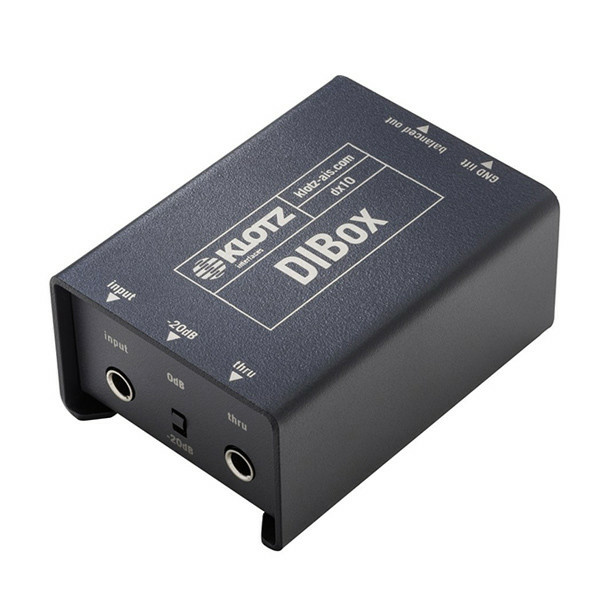

KLOTZ DX10 PASSIVE DI-BOX

Features:
– handmade in germany
– handwired KLOTZ transformer with mu-metal shield for better RF isolation
– custom made 100% mu-metal transformer core
– transformer with a ratio of 6+6:1
– robust and shielding stainless steel housing with hard-wearing laser engraving
– significantly more sound-neutral and stable than other DI-boxes on the market
– 5 years warranty
– successor of D10KL

Specs:

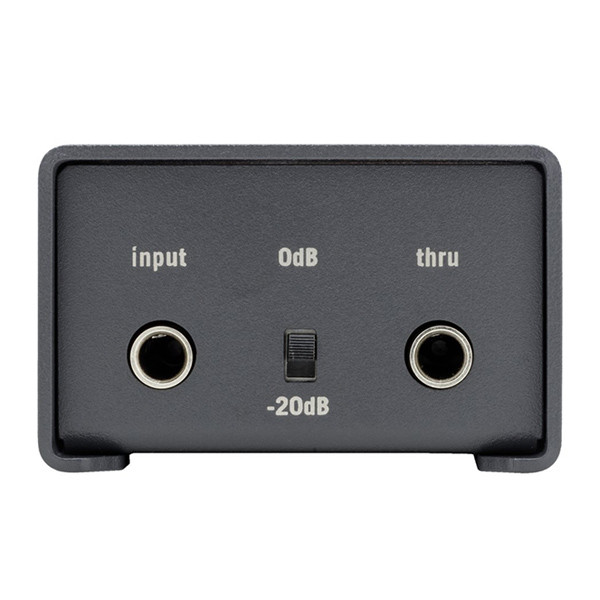

– unbal. input and output: 6.3 mm jack socket

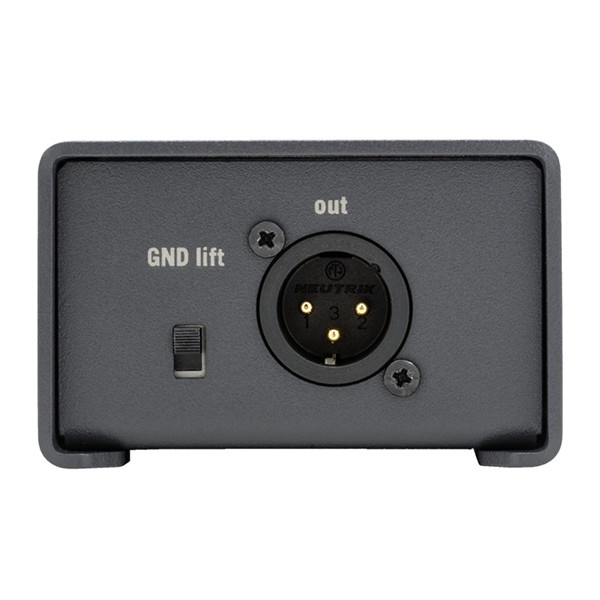

– balanced output: XLR 3p. male
– max. input level at attn. OFF: +10 dBu (2.5 V) / 20 kO
– max. input level at attn. 20: +30 dBu (25 V) / 40 kO
– max. output level: -10 dBu (250 mV) / 200 O
– frequency response: 10 Hz – 30 kHz (+/- 0.3 dB)
– harmonic distortion: <0.1 %
