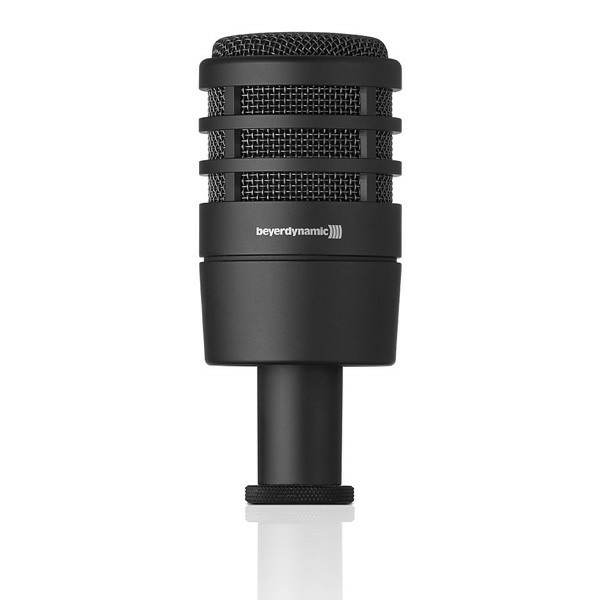

TG D70 d Dynamic mic for bass /kick drums. Hypercardioid
Switchable filter settings, incl. mic. clamp and padded pouch
Technical Specifications
Transducer type . . . . . . . . . . . . . . . . . Dynamic
Operating principle. . . . . . . . . . . . . . . Pressure gradient
Polar pattern . . . . . . . . . . . . . . . . . . . Hypercardioid
Frequency response
Close miking . . . . . . . . . . . . . . . . . . . 20 – 18,000 Hz
Distant miking (measured at 1 m) . . . 40 – 18,000 Hz
Open circuit voltage . . . . . . . . . . . . . . 2.0 mV/Pa (-54 dBV) ±2.5 dB
Nominal impedance . . . . . . . . . . . . . . 280 O
Load impedance. . . . . . . . . . . . . . . . . = 1 kO
Connection . . . . . . . . . . . . . . . . . . . . 3-pin XLR connector, male
Length . . . . . . . . . . . . . . . . . . . . . . . . 128.5 mm
Shaft diameter . . . . . . . . . . . . . . . . . . 23/25 mm
Head diameter . . . . . . . . . . . . . . . . . . 56 mm
Weight (without cable). . . . . . . . . . . . 365 g
