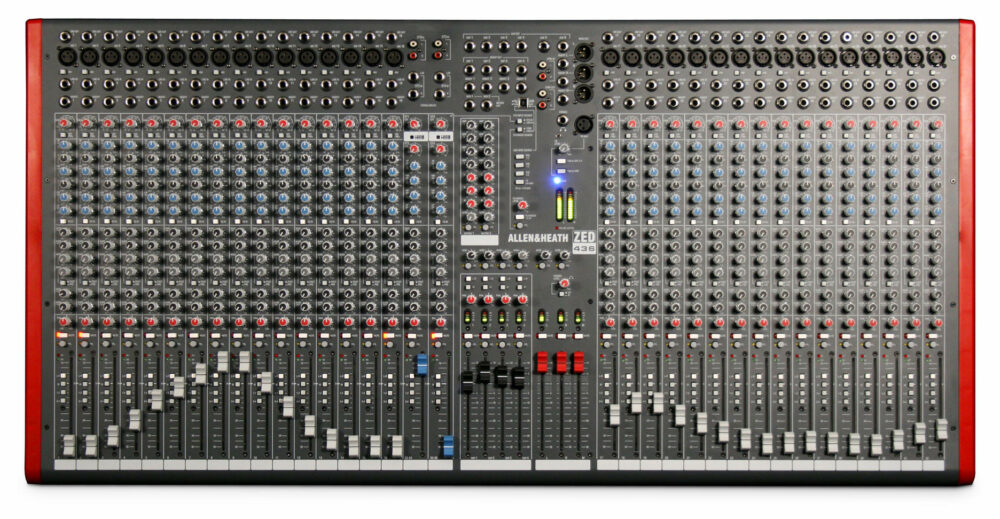

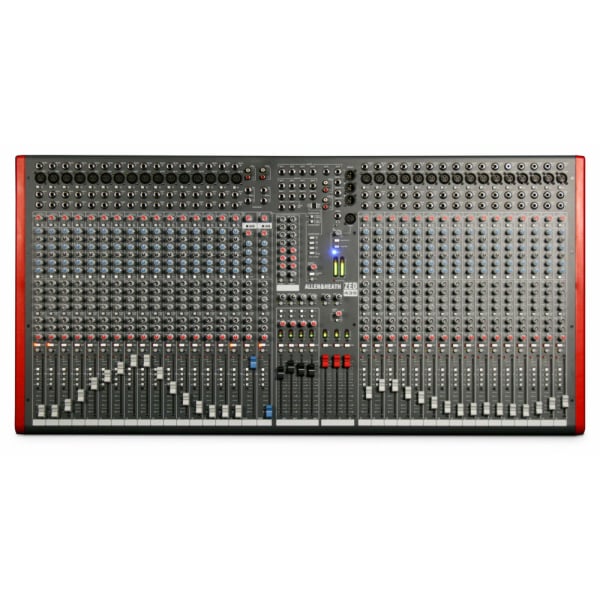

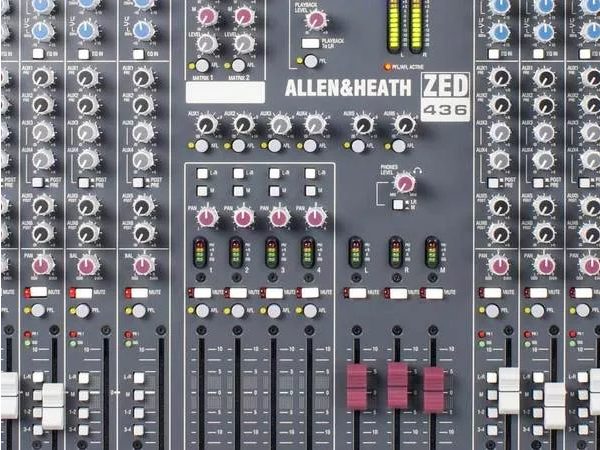

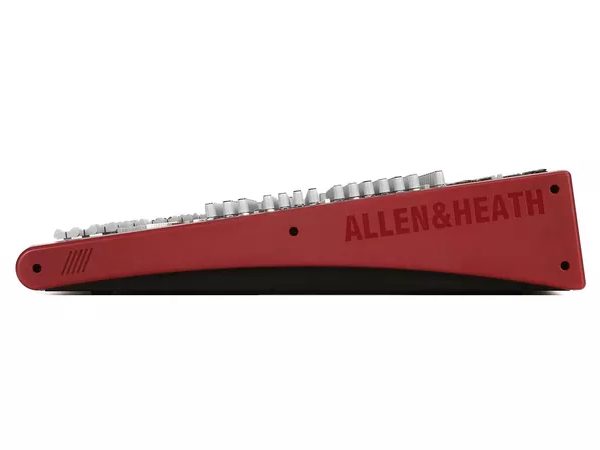

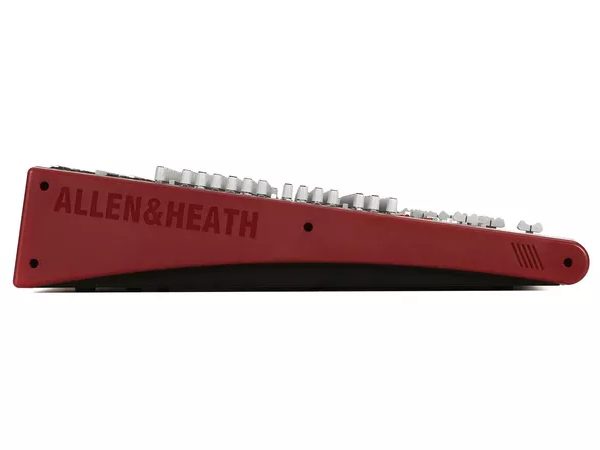

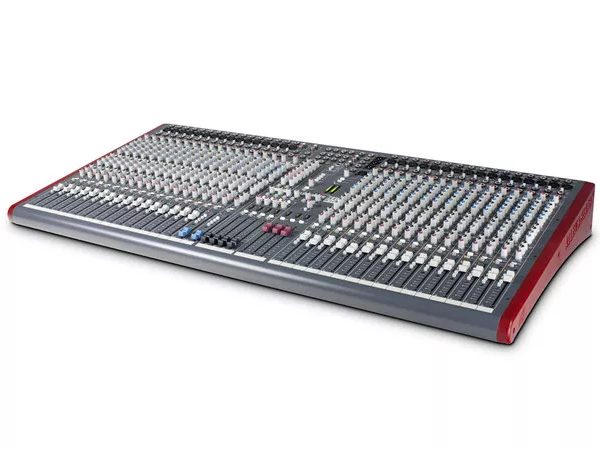

ALLEN & HEATH ZED-436 MIXER ANALOGICO 32ch+2st.-6AUX

4 Bus Mixer for Live Sound & Recording

ZED-436 is excellent for bands, houses of worship, theatres or AV applications. It has a truly professional feature set, which will fit any sound reinforcement application and professional PA hire stock. ZED-436 has Configurable USB audio in/out makes it easy to capture stereo recordings, 32 mic or line inputs plus 2 dual stereo inputs, 4-band EQ with MusiQ, 4 sub-groups, 6 auxiliary sends and a 7×2 matrix.

o32 mono channels
o2 dual stereo inputs with 4-band EQ
oNeutrik mic XLR
oNeutrik 1/4 inch jacks
oChannel insert
oSuper wide gain ‘DuoPre’ mic line input
o4-band EQ with 2 swept mids and in/out switch
oIlluminated mute
oSound image pan
oIlluminated PFL & peak warning indicator
oALPS 100mm faders
o6 auxiliary sends (2 pre, 2 post, 2 pre/post)
o4 sub groups fed from each channel
oAll inputs with level control
o12 bar meters
oL, R and M main mix outputs
o2 matrix sections available’ can send output to USB
oIndividual channel 48V phantom power
oDirect output on every mono channel
oPeak and signal indication on every channel
oConfigurable USB stereo audio in/out
oMaster level controls on all outputs
oEasy to use layout – all connections and controls on top surface
